Power Radio con RDS per terminali htc v2.3.0.0

02 Febbraio 2010 10

Abbiamo parlato spesso dell'applicazione Power Radio, applicazione che permette di ascoltare la radio con in nostri HTC usufruendo del servizio RDS.

Power Radio è compatibile sia con dispositivi VGA (diamond e touch pro) che per WVGA (touch hd, diamond 2 touch pro 2), non tutti purtroppo manca infatti all'appello l' HD2 anche se l'autore del programma ha affermato che sta lavorando per renderlo compatibile.

Il programma è ben realizzato e completo. L'ultima versione trattata era la ed ora siamo alla versione con cui viene introdotta la possibilità di "sfogliare" le stazioni memorizzate muovendo le dita sul terminale  (se utilizzate windows mobile 6.5).  Ecco la lunga lista delle modifiche apportate:

Non vi resta che provarlo. Per vedere se il vostro terminale è compatibile fate clic sul pulsante sotto in cui troverete anche il file .cab di power radio da installare (copiare nel terminale e cliccarci semplicemente sopra per installarlo).

QUI trovate anche qualche skin. La lunga serie delle modifiche a seguire

- Power Radio got gesture support! Please note that this is only supported on Windows Mobile 6.5 or greater
The following gestures are available:
- swipe right/left to switch to next/previous preset bank
- pan a preset to another (free) location. It wont let you overwrite existing presets.

- removed check for FMS_API.DLL
- tuner sensitivity setting reverted to previous versions, as it led to problems on some devices
- changed signal strength calcucation: as there is no absolute maximum to use as a percentage indicator, the strongest station is used for that purpose. Maximum value is saved in PowerRadio.ini.
- fixed bug in logging
- added battery status display
- additional actions for preset buttons: previous preset, seek rev
- changed behaviour: when device is suspended it wakes up on headsetbutton press. Now its sent to suspend after processing the buttonpress

- changed PowerOff behaviour as some devices/ROMs waked up itself after pressing power off

- new function: handle alternate frequencies:

This implies a couple of changes. First, if a station transmits AF lists via RDS they are collected (this has been done in the past too). Now additionally, they are assigned to the current preset, saved in PowerRadio.ini, and retrieved from there respectively. That means, even if you dont receive the station you want to tune, the previously saved AF list is available for action.

The action may be to manually scan for the best frequency, or assign a AF autoscan level. When current reception level is below the AF autoscan level, Power Radio will initiate an AF scan and choose the strongest station. To do it manually, use the "choose best" option on the "Tune alternate frequencies" menu.

This is very handy if you are on travel or go abroad and want to follow your favorite station.

- PowerRadio.ini now contains PI and AF's for presets
- fixed a couple of minor glitches
- added some internal stuff (extended logging etc.)

- new function: TA volume, will be used when a traffic announcement is active on the channel, even when mute is active.
- reworked / bugfixed reception strength display and handling. This also effects tuner sensitivity
- corrected a bug which lead to increased power consumption when screen is off
- RDS messagepipeline performance tuning (avoid messagestorms)
- introduced a new color definition for EON TP available
- minor fixes and adaptions

- bugfix at RDS message rendering, causing delays during message reception
- additional info fields for Program Reference, country and language information. Currently i get strange language codes from the RDS stream so this needs further investigation, consider it not fully functional at this time.
- with the help of beemer (the TMC guru) i was able to nail the crash-on-exit problem, so this should be history.
- changed textmessages scrolling behaviour

- when storing a preset, name may be changed instantly

- Headsetbuttonhandler reworked: GUI during install lets you watch/modify which events to capture
- choose which action is executed on button presses captured by Headsetbuttonhandler (see menu "extra")
- RDS reception improvements for station names and date reception: plausibility checks added to avoid transmission errors

- changed edit handling: inputfield for (nearly) all edit functions is now in the display area (overlays the RDS textmessages during editing)
- textbox now uses masked fields to reduce input errors
- implemented wakeup timer, rearranged menu items for better handling

- modified preset button behaviour: station icons are now drawn with rounded corners, to allow a framed background. PresetbuttonPressed reactivated, has red frame when presetbutton is pressed. Additionally, an active preset will be drawn with a green frame to indicate its selected (colors relate to default skin of course).
- minor corrections
- modified save presets on exit

- icons with black background are drawn transparent
- algorithm for painting rounded corners needs improvement to smooth corner roundings

- bugfix: RDS strings (station names, text messages) containing a "&" have been doubled to "&&"
- added compatibility mode for v1.x skins
- skin check on startup. If skin is not availabe, the default skin will be used (this corrects problems after updating from v1.x resulting in an exception when skin_brown is no longer available)
- fullscreen should now work as expected, although there seems to be a problem: when exiting PR in fullscreen an exception is thrown
- corrected a couple of display flaws
- app close handling restructured (brought back "x" to exit)
- keyboard icon handling, shouldnt annoy any longer
- speedup app screen painting
- plus a zillion minor correctionsi now longer remember

UI now allows for transparency. Sounds unimpressive, but was a) a LOT of work (had to re/write a couple of classes/custom controls to achieve that), and b) allows for a LOT of cool stuff. One thing you sure notice is the background image. This is not hardcoded, you may choose whatever image you like as long as its 480x800 in size. See skin_default.ini if you want to experiment. Another thing is that the control buttons (lower panel) are now made of 2 images: one for the button itself, and one for the symbol which is overlayed over the button. Check the supplied skin_default folder how its done. You may want to check the menu-extras-help too, which gives an idea of the possibilities.

The downside is (yes, there's always one), skins for v1.x cant be used any more, as they are simply not designed to make use of transparency.

Of course, the custom controls are reusable, so if i ever intend to write another piece of code for WinMo, its a great starting point.

Remember, this is an early beta, so please be gentle and report bugs you have found, or other annoyances you come across.

And yes, i didnt forget about (W)QVGA, it still works (at least it should), and still doesnt need extra treatment in regard of images, resizing is all done within the app.

Web Documentation is currently not up-to-date for v2, if you need samples check the supplied skin (its not that hard) or drop a msg in the thread.

- new icon, big thanks to bluemetalaxe
- borderstyle changed due to reported problems with some taskmanagers

- exception handling on invalid input in numeric fields
- RDS textmessages codepage handling (charmap E1 implemented). If you encountered unprintable chars in textmessages, this should fix it

thanks manuel,via



Regolamento Commentando dichiaro di aver letto il regolamento e di essere a conoscenza delle informazioni e norme che regolano le discussioni sul sito. Clicca per info.
Caricamento in corso. Per commentare attendere...

provato e riprovato, prima chiede il framework 3.5 poi non si avvia. aspetto nuove.

Giuseppe Spina

C'è il link nell'articolo che porta al programma. http://powerradio.radioypsilon...
Non mi pare comunque di vedere il touch2 ma non sono riportati tutti. L'unica è scaricare il .cab, copiarlo nel palmare e farci clic sopra per installare e vedere se va


Ma questo bel programmino funziona sul touch2?
Se la risposta fosse affermativa, sapreste dirmi cosa devo fare?


;-) (Y) (D) yesssss


adminhdblog avevi ragione tu. Ho installato il Microsoft .NET Framework versione 3.5 ho modificato la chiave di registro ed adesso funziona. :-D :-D :-D :-D


... oltre al link che trovi all'autore del programma qui c'è il thread su XDA se ti può essere di aiuto http://forum.xda-developers.co...

David Morpurgo

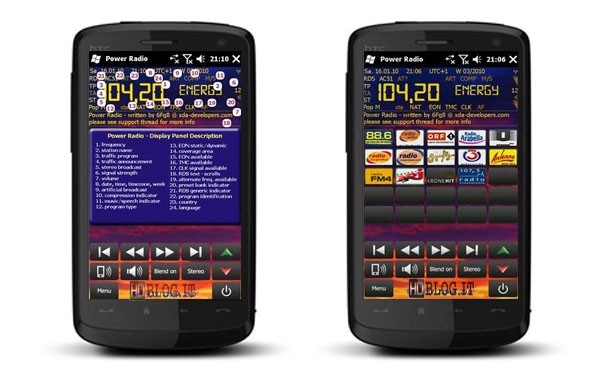

Vedo ke in alto c'e una foto con i numeretti ke immagino servano a spiegare cosa vogliono dire le scritte...
si puo avere la didascalia?


Ma il netcf 3.5 lo hai installato? Mi sembra di ricordare che sul Diamond va anche modificata una chiave di registro per attivarlo, ne parlammo qui molto tempo fa, prova a fare qualche ricerca. Sul diamond deve funzionare...


A me su P3700 non funziona. Prima di installarlo, mi dava errore. Mancava il Microsoft.NET Framework 3.5. Una volta installato, mi da il sommario del telefonino. Di Power radio nemmeno l'ombra. Chiudo l'applicazione è mi da il seguente errore:Power radio.exe ArgumentException. Impossibile visualizzare un messaggio di errore. Non è stato trovato l'assembly della risorsa facoltativo che lo contiene


bel programma..
